World-Class Manufacturing, Built for Precision
Over 15,000 sq. ft. of ISO 9001-2015-certified production space, housing advanced SMT lines, automated inspection systems, and a quality lab that sets the standard for electronics manufacturing in India.
Equipped for Every Challenge
Precision machinery for high-quality electronics manufacturing.

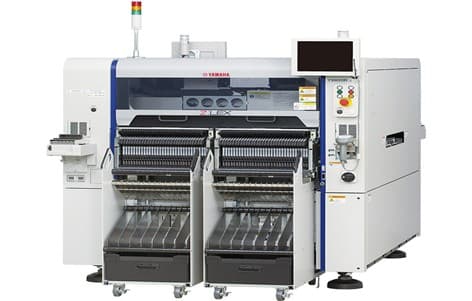

High-Speed SMD Pick & Place
Yamaha · YSM20
The Yamaha YSM20 is a high-speed, high-precision pick & place system engineered for demanding SMT production environments. Featuring a dual X-axis 2-beam configuration with 20 nozzles, it delivers exceptional throughput, flexible component handling from 0201 metric chips to large ICs, and a wide PCB range for both single and dual-stage conveyance.
Model
YSM20
Make
Yamaha
Type
High-Speed Pick & Place
Mounting Speed
Up to 95,000 CPH
Mounting Head
X-axis 2-beam: 2 heads, 10 nozzles each
PCB Size (Single Lane)
L810 × W490 to L50 × W50 mm
PCB Size (Dual Stage)
L380 × W490 to L50 × W50 mm
Mounting Accuracy
±0.035mm (±0.025mm) Cpk ≥1.0 (3σ)
Component Size
0201 metric to 55×100mm
Component Height
Up to 28mm
Tape Feeder Capacity (8mm)
Max 140 types (fixed) / 128 types (exchange)
Tray Capacity
Up to 10 types (carriage type)

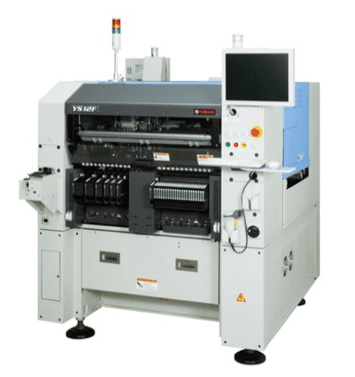

Flexible Mounter Pick & Place
Yamaha, Japan · YS12F
The Yamaha YS12F is a high-flexibility pick & place mounter designed for medium to high-mix production runs. With a single head carrying 5 nozzles and a broad component range including BGA and CSP, it delivers reliable placement accuracy and versatile feeder compatibility for both prototype and volume assembly.
Model
YS12F
Make
Yamaha, Japan
Type
Flexible Mounter
Mounting Speed
Up to 20,000 CPH
Mounting Head
Single head with 5 nozzles
Applicable PCB
L510 × W460mm to L50 × W50mm
Mounting Accuracy
±0.05mm / chip
Component Range
0402 metric chips up to 45×100mm (incl. BGA, CSP)
Tape Feeders
Up to 106 types (8mm equivalent)
Tray Feeders
Up to 15 types (JEDEC tray)

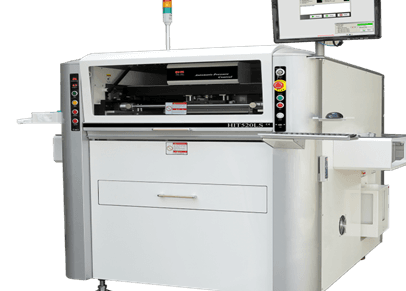

Solder Paste Printer
HIT · HIT 520L
The HIT 520L is a fully capable solder paste printer with precision squeegee control and automated stencil cleaning. Offering a maximum board size of 450×350mm, a fast cycle time under 8 seconds, and flexible squeegee angles, it ensures consistent paste deposition for high-quality SMT assembly.
Model
HIT 520L
Type
Solder Paste Printer
Max Board Size (X×Y)
450mm × 350mm
Min Board Size (X×Y)
50mm × 50mm
PCB Thickness
0.4mm – 6mm
Template Frame Size
470×370mm to 737×737mm
Squeegee Type
Metal scraper (45°/50°/60°)
Squeegee Length
250mm / 460mm
Squeegee Thickness
0.25mm Diamond-like carbon coating
Printing Mode
Single or double scraper
Printing Speed
10 – 300 mm/s
Printing Pressure
4kg – 20kg
Cleaning Mode
Drip system; Dry, wet & vacuum
Cycle Time
<8s (excluding printing & cleaning)

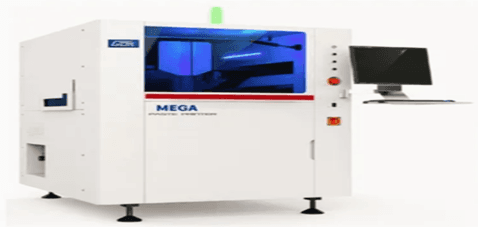

Solder Paste Printer
HTGD · HTGD MEGA
The HTGD MEGA solder paste printer delivers fast and accurate paste printing with rapid product changeover in under 5 minutes. Supporting boards up to 450×350mm with flexible squeegee options and an efficient cleaning system, it is engineered for high-throughput SMT production lines.
Model
HTGD MEGA
Type
Solder Paste Printer
Max Board Size (X×Y)
450mm × 350mm
Min Board Size (X×Y)
50mm × 50mm
PCB Thickness
0.4mm – 6mm
Template Frame Size
470×370mm to 737×737mm
Squeegee Type
Steel / Glue scraper (45°/50°/60°)
Squeegee Length
200mm – 500mm
Squeegee Height
65 ± 1mm
Squeegee Thickness
0.25mm Diamond-like carbon coating
Printing Mode
Single or double scraper
Printing Speed
0 – 200 mm/s
Printing Pressure
0.5kg – 10kg
Cleaning Mode
Drip system; Dry, wet & vacuum
Cycle Time
<7s (excluding printing & cleaning)
Product Changeover
<5 minutes
Reflow Soldering Oven — 7 Zone
Heller · 1707 MKIII
The Heller 1707 MKIII is a precision 7-zone forced convection reflow oven offering exceptional temperature stability and control accuracy of ±0.1°C. With 14 heaters (7 top + 7 bottom) and a profile change time of 5–15 minutes, it delivers repeatable thermal profiles for consistent solder joint quality across complex multi-layer PCB assemblies.
Model
1707 MKIII (Air)
Make
Heller
Max PCB Width
18" (46cm) / 22" (56cm)
Conveyor Length
18" (46cm)
Heated Tunnel Length
70" (179cm)
Max Conveyor Speed
74"/min (188 cm/min)
Heater Zones
7 zones
Number of Heaters
TOP: 7 / BOTTOM: 7
Profile Change Time
5–15 minutes
Temperature Accuracy
±0.1°C
Temperature Range
60°C – 350°C
Cooling Zones
1

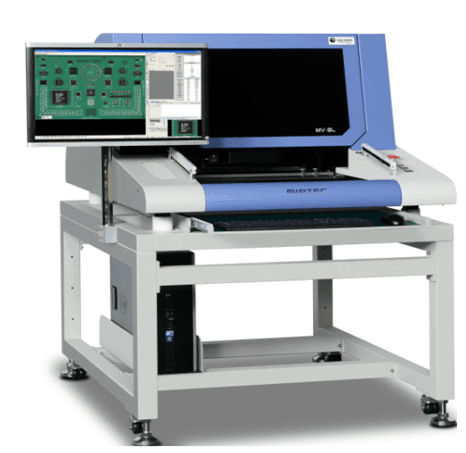

Automatic Optical Inspection (AOI)
Mirtech · MV3V
The Mirtech MV3V AOI system provides comprehensive automated optical inspection for SMT assemblies. Equipped with a 5.0 megapixel top-down camera and an optional 4-camera side-viewer system, it detects a wide range of defects — from lifted leads and bridge faults to polarity errors and missing components — at an inspection speed of up to 173 cm²/sec.
Model
MV3V
Make
Mirtech
Max PCB Size
500mm × 400mm
Top Camera
5.0 Mega (2456 × 2058 pixels)
Side Cameras
Optional 4-camera side-viewer
Inspection Speed
Up to 173 cm²/sec
Detectable Defects
Lifted Lead, Bridge, Wrong/Missing Component, Insufficient/Excessive Solder, Misalignment, Polarity, Tombstone, Flipped Component, OCR Recognition, Pad Scratch, Solder Balls

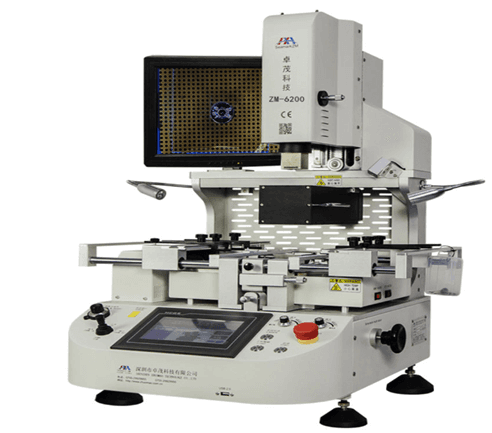

BGA Rework Station
Zhuomao · ZM-R-6200
The Zhuomao ZM-R-6200 is an advanced BGA rework station featuring dual hot-air heaters and a powerful 2700W IR bottom preheater. With optical alignment, PLC-controlled temperature management, and support for BGA chips from 1×1mm to 80×80mm, it enables precise and reliable BGA reballing, removal, and replacement.
Model
ZM-R-6200
Make
Zhuomao
Top Heater
1200W hot air
2nd Heater
1200W hot air
Bottom IR Preheater
2700W IR
Control System
Touch screen + PLC + Optical alignment
Temperature Control
K-sensor closed-loop
PCB Size
Max 410×370mm / Min 65×65mm
BGA Chip Size
1×1mm to 80×80mm
PCB Positioning
V-groove with universal fixture

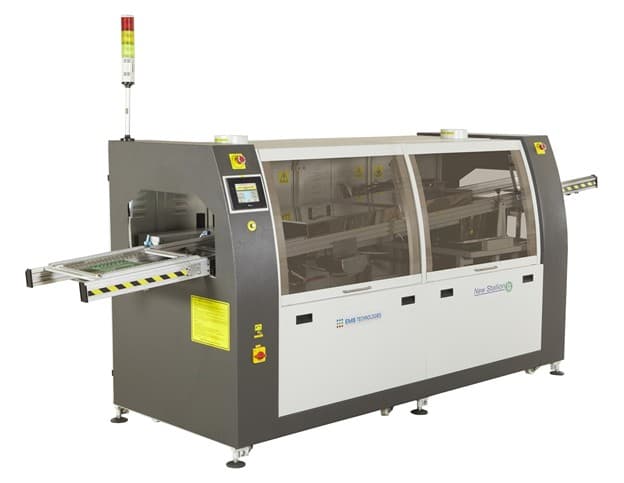

Wave Soldering Machine
EMS Technologies · Stallion CC PLC
The Stallion CC PLC wave soldering machine is designed for high-reliability through-hole and mixed-technology PCB assembly. Featuring an orbital O-Wave SMD option, a dual-wave pot with 225kg lead-free or 255kg leaded solder capacity, foam fluxer, and a carrier conveyor with warping prevention — it offers production-grade wave soldering performance.
Model
Stallion CC PLC
Make
EMS Technologies
Type
Wave Soldering
Fluxer
Stainless steel 5L tank, foam fluxer with porous candle
Solder Pot
Dual wave: 225kg lead-free / 255kg leaded
SMD Option
Orbital 'O-Wave' multi-jet SMD soldering
Heaters
High-reliability external plate heaters
Conveyor Angle
Manual: 3°, 4°, or 5°
PCB Support
Adjustable carrier with center rod & wire support

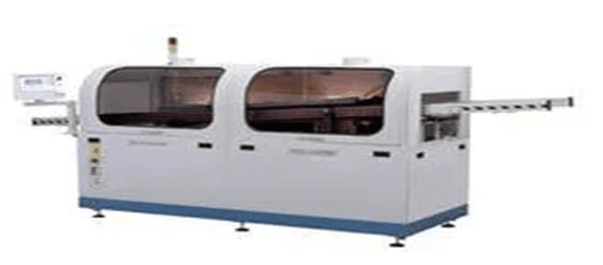

Wave Soldering Machine
EMS Technologies · Stallion U321
The Stallion U321 wave soldering machine delivers dependable through-hole and mixed-assembly soldering with a 2-stage IR preheating system and PID temperature control. Supporting PCBs up to 300mm wide via pallet/finger conveyor, with a lead-free compatible titanium-option solder pot and adjustable conveyor angle for optimal soldering performance.
Model
Stallion U321
Make
EMS Technologies
Type
Wave Soldering
Fluxer
Stainless steel 5L tank, foam fluxer
Solder Pot
~170kg, lead-free compatible (titanium option)
Preheating
2-stage IR preheaters with PID temperature control
Max PCB Width
300mm (pallet/finger conveyor)
Conveyor Angle
Manual: 3°, 4°, or 5°
Testing & Box Build Facility
Flipchip Electronics · Integrated Assembly Line
Dedicated box build and testing facility supporting complete electro-mechanical assembly, subsystem integration, enclosure fitment, cable routing, functional validation, and shipment-ready packaging. Designed for reliable end-to-end product integration and quality assurance.
Facility Type
Testing & Box Build
Application
Electro-Mechanical Assembly
Capability
Functional & Burn-In Testing
Support
Packaging & Dispatch Preparation
A Factory Designed Around Zero-Defect Manufacturing
Our facility is purpose-built for electronics manufacturing excellence. Every workstation, material flow path, and environmental control system has been designed to minimise contamination, operator error, and process variability.
- ESD-controlled production floor throughout
- Temperature & humidity-controlled SMT area
- Separated receiving, production, and shipping zones
- Fully traceable MES with lot-level genealogy
- CCTV-monitored with restricted access control
- ISO 9001 compliant quality management system
